تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: TIMKEN / NSK / NTN / FSKG / KBE / OEM
إصدار الشهادات: ISO9001-2000 / SGS / BV / CE / IAF
رقم الموديل: FC3044120
شروط الدفع والشحن
الحد الأدنى لكمية: 1 قطعة - 5 قطعات
الأسعار: 0.1-200USD
تفاصيل التغليف: 1) حزمة صناديق ملونة واحدة + حزمة صناديق الكرتون + حزمة الحزم ، 2) حزمة أنابيب بلاستيكية / حزمة كراف
وقت التسليم: 3-7 أيام بعد الإيداع
شروط الدفع: إيداع 30٪ ، رصيد بعد نسخ BL
القدرة على العرض: 100000 قطعة / الشهر
النموذج رقم: |
FC3044120 تحمل |
FC3044120 حجم الحامل: |
150*220*120 مللي متر |
FC3044120 تحمل كجم: |
15.5 كجم |
الجودة: |
ABEC-5 |
المواد: |
الصلب الكروم Gcr15 |
الأصلي: |
ووكسي |
النموذج رقم: |
FC3044120 تحمل |
FC3044120 حجم الحامل: |
150*220*120 مللي متر |
FC3044120 تحمل كجم: |
15.5 كجم |
الجودة: |
ABEC-5 |
المواد: |
الصلب الكروم Gcr15 |
الأصلي: |
ووكسي |

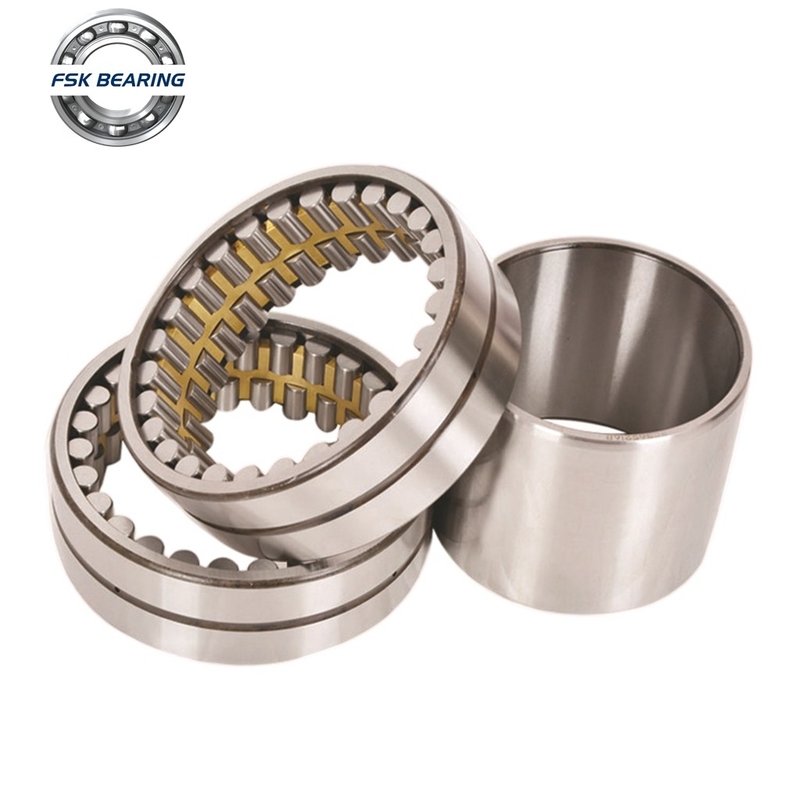

Multiple Row FC3044120 672930K Four Row Cylindrical Roller Bearing Steel Mill Bearings
Bearing Specification :
|
FSK BEARING Model Number |
FC3044120 |
| Alternative Number | 672930K |
| Part Name | Cylindrical Roller Bearing |
| Application | Rolling Mill Roller Bearing |
| Material | Gcr15 Chrome steel |
| Cage | Brass Cage / Steel Cage |
| Row | Four Row |
| Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Dimensions(mm)(d*D*b) | 150*220*120mm |
| Weight / Mass ( KG ) | 15.5kg |
| HS Code | 8482800000 |
Bearings Detailed Pictures
Same Series Bearings We Offer:
| Bearing Number | d | D | H | m | |||||
| FC182870A | 90 mm | 140 mm | 70 mm | 3.78 KG | |||||
| FC182874 | 672718 | 90 mm | 140 mm | 74 mm | 4.2 KG | ||||
| FC1828105 | 672718K | 90 mm | 140 mm | 105 mm | 6 KG | ||||
| FC182870 | 90 mm | 140 mm | 70 mm | 4.08 KG | |||||
| FC202780 | 100 mm | 135 mm | 80 mm | 3 KG | |||||
| FC202870/YA3 | 672820K | 100 mm | 140 mm | 70 mm | 3.1 KG | ||||
| FC202870A/YA3 | 100 mm | 140 mm | 70 mm | 3.62 KG | |||||
| FC202880 | 672720K | 100 mm | 140 mm | 80 mm | 3.8 KG | ||||
| FC2028104A | 100RV1401 | 100 mm | 140 mm | 104 mm | 4.99 KG | ||||
| FC2028104 | 100 mm | 140 mm | 104 mm | 5.18 KG | |||||
| FC202970 | 672720 | 20FC1570 | 100 mm | 145 mm | 70 mm | 3.8 KG | |||
| FC203074/YA3 | 4R2035 | 100 mm | 150 mm | 74 mm | 4.7 KG | ||||
| FC2030106 | 100 mm | 150 mm | 106 mm | 6.6 KG | |||||
| FC223490 | 672722K | 22FC1790 | 110 mm | 170 mm | 90 mm | 7.5 KG | |||
| FC223492 | 110 mm | 170 mm | 92 mm | 7.7 KG | |||||
| FC2234120 | 672722 | 110RV1701 | 110 mm | 170 mm | 120 mm | 10.1 KG | |||
| FC233390/YA3 | 537675 | 115 mm | 165 mm | 90 mm | 6.5 KG | ||||
| FC243387/YA3 | 120RV1601 | 24FC1787 | 120 mm | 165 mm | 87 mm | 6 KG | |||
| FC243390/YA3 | 537675 | 120 mm | 165 mm | 90 mm | 5.6 KG | ||||
| FC243692 | 672824 | 4R2437 | 120 mm | 180 mm | 92 mm | 8.01 KG | |||
| FC2436105 | 672724 | 120RV1801 | 4R2438 | 4CR120 | 120 mm | 180 mm | 105 mm | 9.13 KG | |
| FC2436120 | 120 mm | 180 mm | 120 mm | 11.2 KG | |||||
| FC2443102 | 120 mm | 215 mm | 102 mm | 16 KG | |||||
| FC2443174/YA3 | 120RV2101 | 120 mm | 215 mm | 174 mm | 27.2 KG | ||||
| FC2640104/YA3 | 130RV2003 | 4R2628 | 26FC20104 | 130 mm | 200 mm | 104 mm | 12 KG | ||
| FC2640110/YA3 | 26FC20110 | 130 mm | 200 mm | 110 mm | 12.7 KG | ||||
| FC2640125 | 672726 | 130RV2001 | 26FC20125 | 130 mm | 200 mm | 125 mm | 14.6 KG | ||
| FC2838119 | 28FC19119W | 140 mm | 190 mm | 119 mm | 9.7 KG | ||||
| FC2842100 | 140 mm | 210 mm | 100 mm | 12.2 KG | |||||
| FC2842106 | 672828 | 140 mm | 210 mm | 106 mm | 13 KG | ||||
| FC2842116/YA3 | 140RV2101 | 4R2823 | 28FC21116A | 140 mm | 210 mm | 116 mm | 13.9 KG | ||
| FC2842155K/C9YA3 | 140 mm | 210 mm | 155 mm | 18.1 KG | |||||
| FC2842125 | 140 mm | 210 mm | 125 mm | 15.6 KG | |||||
| FC2842155 | 140 mm | 210 mm | 155 mm | 18.9 KG | |||||
| FC2942155/YA3 | 314625 | 511605 | 145RV2101 | 4R2906 | 29FC21155 | 145 mm | 210 mm | 155 mm | 18.3 KG |
| FC2945156/C3 | 313924A | 538522 | 145RV2201 | 4R2904 | 313924 | 145 mm | 225 mm | 156 mm | 23.6 KG |
| FC2946156 | 145 mm | 230 mm | 156 mm | 24.7 KG | |||||
| FC3042120 | 150 mm | 210 mm | 120 mm | 12.5 KG | |||||
| FC3042150 | 30FC21150 | 150 mm | 210 mm | 150 mm | 15.9 KG | ||||
| FC3044120 | 672930K | 150 mm | 220 mm | 120 mm | 15.5 KG | ||||
