تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: FSK / KOYO / NSK / FAG / NTN / TIMKEN / OEM
إصدار الشهادات: ISO9001-2000 / CE / ROHS / UL
رقم الموديل: 45296
شروط الدفع والشحن
الحد الأدنى لكمية: 1 قطعة
الأسعار: Talk in the letter
تفاصيل التغليف: 1) التعبئة الملونة بصندوق واحد + تعبئة علب الكرتون + المنصات ، 2) التعبئة الصناعية
وقت التسليم: 5-7Days بعد تأكيد التفاصيل
شروط الدفع: خطاب الاعتماد، T/T، ويسترن يونيون، موني جرام
القدرة على العرض: 100000 قطعة/شهر
نموذج: |
45296 تحمل |
45296 تحمل الوزن: |
215 كجم |
45296 حجم المحمل: |
480*700*165 مللي متر |
رمز النظام المنسق: |
8482800000 |
تصنيف الدقة: |
P0 / P6 / P5 / P4 /P2 |
اورينجين: |
الصين |
نموذج: |
45296 تحمل |
45296 تحمل الوزن: |
215 كجم |
45296 حجم المحمل: |
480*700*165 مللي متر |
رمز النظام المنسق: |
8482800000 |
تصنيف الدقة: |
P0 / P6 / P5 / P4 /P2 |
اورينجين: |
الصين |
FSK 45296 Double Row Tapered Roller Bearing ID480mm P6 P5
Bearing Specification
|
FSK Bearing Model Number |
45296 Bearing |
|
Part Name |
Tapered Roller Bearings |
|
Row |
Double Row |
| Type |
TDI (consist of a one-piece (double) inner ring and two separate outer rings. An outer ring spacer is typically included, forming a pre-adjusted assembly with the inner and outer rings. The outer ring spacer has oil grooves and holes to facilitate lubrication from the housing into the bearing) |
|
Brand |
FSK / FSKG / KOYO / NSK / FAG / NTN / TIMKEN / OEM |
|
Material |
Gcr15 Chrome Steel |
|
Precision Rating |
ABEC-3 to ABEC-5 P6 / P5 / P4 |
| Cage | Steel Cage |
| Weight (kg) | 215 kg |
| Dimension | 480*700*165mm |
| HS Code | 8482800000 |
| Original Country Show | CHINA |

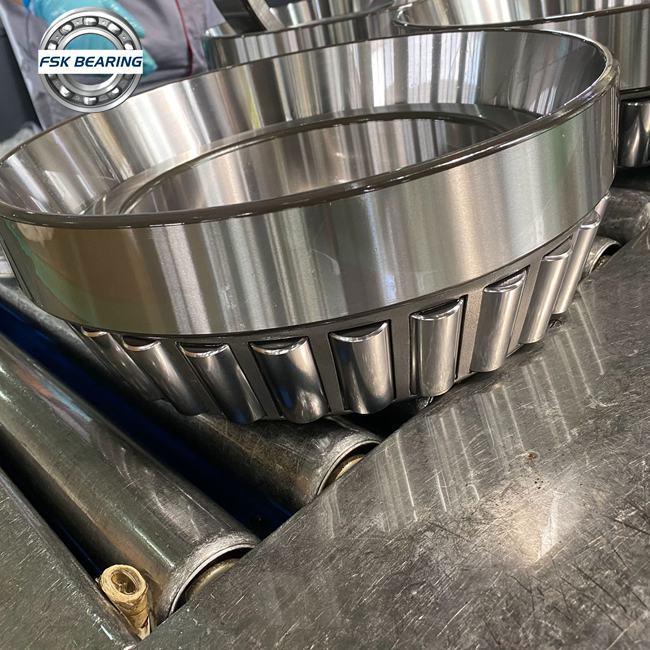

Bearings Detailed Pictures
Same Series Bearing We Do
|
||||
| Bearing Number | d | D | H | m |
| 14126D/14276 | 31.75 | 69.01 | 39.71 | 0.71 kg |
| 13169D/13318 | 42.86 | 80.96 | 34.92 | 0.78 kg |
| 13176D/13318 | 44.45 | 80.96 | 34.92 | 0.75 kg |
| 13182D/13318 | 46.04 | 80.96 | 34.92 | 0.73 kg |
| 375D/374 | 50.8 | 93.26 | 50.01 | 1.40 kg |
| 375D/372A | 50.8 | 96.84 | 53.19 | 1.61 kg |
| 389DE/382A | 55.56 | 96.84 | 51.3 | 2.04 kg |
| 39585D/39520 | 63.5 | 112.71 | 60.32 | 2.59 kg |
| 78251D/78537 | 63.5 | 136.52 | 66.09 | 4.58 kg |
| 78251D/78551 | 63.5 | 140.03 | 66.09 | 4.84 kg |
| 78255D/78537 | 64.99 | 136.52 | 66.09 | 4.55 kg |
| 78255D/78551 | 64.99 | 140.03 | 66.19 | 4.92 kg |
| 496D/492A | 80.96 | 133.35 | 60.32 | 3.25 kg |
| 496D/493 | 80.96 | 136.52 | 60.32 | 3.52 kg |
| 581D/572 | 80.96 | 139.99 | 80.96 | 5.31 kg |
| L217845D/L217810 | 85.72 | 123.82 | 41.28 | 1.72 kg |
| L217845D/L217813 | 85.72 | 127 | 41.28 | 1.92 kg |
| 767D/752 | 88.9 | 161.92 | 101.55 | 8.77 kg |
| 42362D/42584 | 92.08 | 148.43 | 57.15 | 3.87 kg |
| LM119348D/LM119311 | 95.25 | 136.52 | 57.15 | 2.68 kg |
| 779D/772 | 98.42 | 180.98 | 101.6 | 11.34 kg |
| 52400D/52618 | 101.6 | 157.16 | 80.17 | 5.29 kg |
| 52400D/52638 | 101.6 | 161.92 | 86.52 | 6.27 kg |
| 782D/772 | 104.78 | 180.98 | 101.6 | 10.69 kg |
| 946D/932 | 107.95 | 212.72 | 142.88 | 22.95 kg |
| 71450D/71750 | 114.3 | 190.5 | 98.42 | 11.01 kg |
| HH224346DD/HH224310 | 114.3 | 212.72 | 142.88 | 22.01 kg |
| M224749D/M224710 | 120.65 | 174.62 | 66.68 | 5.82 kg |
| 67388D/67322 | 127 | 196.85 | 92.08 | 10.67 kg |
| 97500D/97900 | 127 | 228.6 | 160.34 | 24.48 kg |
| 95499D/95925 | 127 | 234.95 | 139.7 | 25.96 kg |
| 74510D/74850 | 130 | 215.9 | 123.82 | 17.45 kg |
| 74512D/74850 | 130.18 | 215.9 | 101.6 | 14.95 kg |
| 67390D/67322 | 133.35 | 196.85 | 92.08 | 9.73 kg |
| H228649D/H228610 | 136.52 | 225.42 | 120.65 | 19.97 kg |
| 48680D/48620 | 139.7 | 200.02 | 77.79 | 8.12 kg |
| 82587D/82931 | 149.22 | 236.54 | 106.36 | 17.46 kg |
| 82587D/82950 | 149.22 | 241.3 | 106.36 | 19.08 kg |
| 99587D/99100 | 149.22 | 254 | 120.65 | 25.94 kg |
| 81601D/81962 | 152.4 | 244.48 | 87.31 | 14.95 kg |
| H432549D/H432510 | 155.58 | 247.65 | 122.24 | 23.20 kg |
| 46790D/46720 | 165.1 | 225.42 | 79.38 | 9.45 kg |
| HM237542D/HM237510 | 174.62 | 288.92 | 123.82 | 31.86 kg |
| 67790D/67720 | 177.8 | 247.65 | 90.49 | 13.31 kg |
| 82680D/82620 | 177.8 | 279.4 | 112.71 | 25.80 kg |
| 94706D/94113 | 177.8 | 288.92 | 123.82 | 32.59 kg |
| HM237546D/HM237510 | 177.8 | 288.92 | 123.82 | 31.81 kg |
| EE280700D/281200 | 177.8 | 304.8 | 109.44 | 31.88 kg |
| H239649D/H239610 | 187.32 | 319.96 | 168.28 | 52.74 kg |
| H239649D/H239612 | 187.32 | 320.68 | 168.28 | 53.29 kg |
| 93751D/93125 | 190.5 | 317.5 | 133.35 | 41.90 kg |
| EE420750D/421450 | 190.5 | 368.3 | 158.75 | 76.88 kg |
| 93788D/93125 | 199.97 | 317.5 | 133.35 | 40.09 kg |
| 93800D/93125 | 203.2 | 317.5 | 123.82 | 42.55 kg |
| 93801D/93125 | 203.2 | 317.5 | 133.35 | 37.25 kg |
| 93801D/93126 | 203.2 | 317.5 | 142.88 | 38.98 kg |
| EE420800D/421437 | 203.2 | 365.05 | 158.75 | 70.53 kg |
| EE420804D/421450 | 203.28 | 368.3 | 158.75 | 71.12 kg |
| 67985D/67920 | 206.38 | 282.58 | 87.31 | 16.45 kg |
| H242649D/H242610 | 206.38 | 336.55 | 180.98 | 65.07 kg |
About Railway Bearing
Description
1) High quality, competitive price .
2) Original same bearing and same packing , same label and same barcode.
3) High-end producing line and testing.
4) Professional team and service.
5) / FAG/ INA/ TIMKEN / NSK / KOYO / NTN / NACHI / IKO/ RHP/ ASAHI/ IZWZ / HRB / LYC can be offered.
FSK Advantage
+ 10 years manufacture experiences
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
Established in 2005, FSK has grown to be one of the main professional providers for bearings all over the world . We take pride in every single product that we sell .Our bearings are in hot sale with better quality and low pricing. You can be relieved and trusting us for our professional bearing technology and service , our friendly English-speaking team is always ready to help you out with importing procedures, product questions and technical support. And we promise to make you or your client proud with our products and services.
